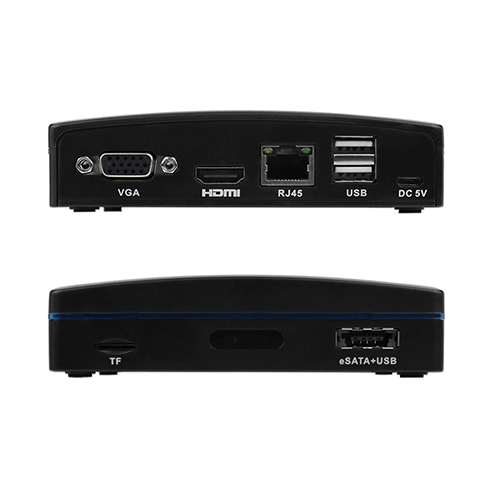

► 4/8/16-channel 5MP Mini NVR
► H.265 Compression.
► Support Onvif, compatible with all IP Cameras with standard Onvif protocal
► Support PC web, CMS, Mobile app Remote View
► Support VGA HDMI output
► Support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP searches, Alarm Center, etc
► Support multiple cloud technology,network penetration, Alarm Push, etc
► Support human detection, face detection, motion detection, etc
► Support External E-SATA, USB HDD and SD Card Recording
► Support 2D/3D noise reduction,digital wide dynamic

OS	Embedded LINUX OS
Image codec	H.265
Preview	4IPC 5mP@25fps/4PC4MP
Coding	4IPC 5mp@25fps/4IPC4MP
Decode / Playback	1*IPC 5mp@25fps
Video input	4 Channels * IPC
Video Output	1 * VGA, 1* HDMI（MAX 5mp）
Audio Input	0
Audio Output	0
Network	RJ45 10M/100M
USB Port	2 * USB port (Support external HDD up to 6TB)
HDD Interface	1 * eSATA HDD + 1 * USB Two-in-One Port (up to 6TB)
TF Card	Support(Up to 128GB Class10)
Power	5V1.5A
Power consumption	Less than 10W
Working Temperature	0℃—+55℃
Working Humidity	10%—90%
Barometric pressure	86kpa—106kpa
