CCTV Security One-Stop-Source Manufacturer

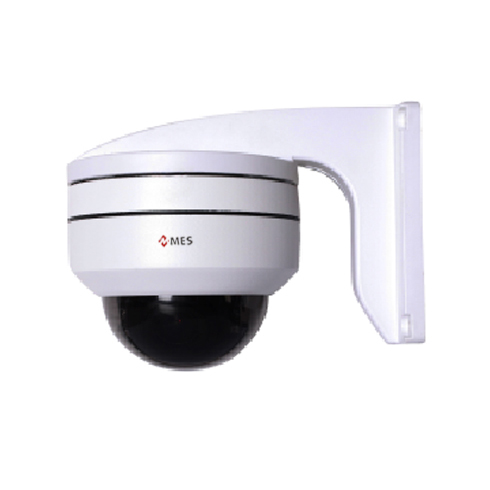

►Outdoor 4X Zoom 1080P Wireless Vandalproof PTZ IP Camera,IP66,IK10
►Support H.265/MJPEG compression,triple stream video output
►Local Lan wireless range 200M,Wifi range unlimited
►P2P, Support QR code scanning to view on Iphone and android Mobiles
►IR range up to 35M
►Support Max 128G TF Card slot, Cloud Storage
►Support Audio, POE Optional.
►Compatible with HIKVISION ,DAHUA,XM,Video park NVR .etc
►Compatible with CMS,UC2,Milestone, NUUO and AXXON platform.etc
►Intelligent IR illumination & power consumption is variable, dependant the zoom factor

Camera
Solution	1/3” CMOS 2MP SC2232
Output pixel	1920x1080/30fps 1920x1080/25fps
Lens	4X f=2.8mm~12mm/ Fixed lens :4mm
Dome
Software Control	IE, CMS, Management Platform
Mobile View	Android iPhone
Rotation Range	Pan:0º~350º ,Tilt:0º~70º
Rotation Speed	Pan:0~25°/s , Tilt:0~20º/s
Preset Points	220pcs presets（dwell time 01-60s interval available）
Guard Tours	3 groups( Max.16 points, dwell time user selectable)
AB scan range	Any point in range:0º~93º and 0º~360º(BT-54F)
AB scan speed	1-9 grades
Operating temperature	Outdoor: -40°C~+60°C
Operation menu	English
IR distance	45 meters
Wifi
WIFI Protocol	802.11b/g/n
Wireless distance	≧150M
WiFi Safe mode	WEP\WPA\WPA2
