CCTV Security One-Stop-Source Manufacturer

● Industrial grade design, IP54
● Support 2 channels camera, built-in camera for front view, IPC is external camera which for back view/wide view inside

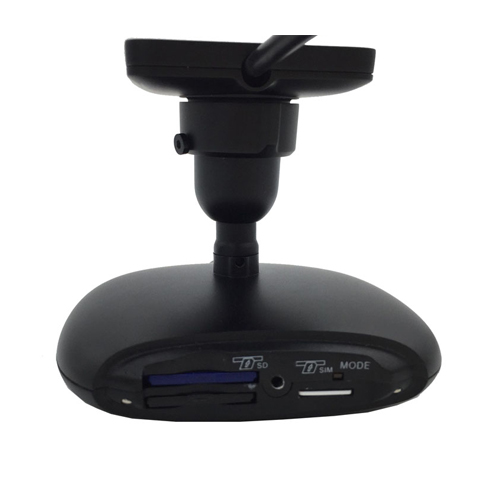

● Mini 2 channel 1080P 3G/4G GPS WIFI Mobile DVR.
● H.265 compression code adopt Hisilicon high performance processor
● Support Bluetooth (as optional), can be intercom voice talking at center
● Support 3G/4G/WIFI multiple network optional
● Built-in group communication function
● Rich CMS function, including remote live view in real time, playback, download, broadcasting, talk
● Support various transmission quality options
● Support two SD cards, each up to 256GB
● Support to connect with equipment with mobile phone through Wi-Fi
● Support to set parameters via mobile phone
● Support WIFI, Bluetooth and mobile network automatic switch.
● 8-36V wide voltage
● Support Center Management Software platform (CMS)
● Support iPad, iPhone, Android and PC to remote view in real time.

Industrial design		Mini size; can adsorb on any kind of vehicle glass
User interface		Support E-set, remote controller, remotely operation, SD card, etc. to configure
Language		English, Chinese ( option customized )
Security		User password, Administrator password management
Video & Live	Video input	2Ch 1080P video input; 1Ch built-in, another Ch external IPC input;
	OSD	Overlays letters, like date /time, vehicle ID, etc. into the video
	Compression	H.265 High Profile Compression
	Dual stream	Record with HD video and remotely live view with lower stream
	Resolution	Default 1080P, 720P optional;
	Frame rate	720p: 1024kbps, 2048 kbps, 3072 kbps, 4096 kbps, 5120 kbps,5 grades adjustable 1080p: 2048 kbps, 3072 kbps, 4096kbps, 5120kbps, 6144 kbps, 5 grades adjustable
Audio	input/output	Mic audio input, blue tooth audio input; Blue tooth audio output;
Audio	Compression	G.726
Record	Storage	SD card, support 16-256GB
	Format	ASF/FAT32
	Strategy	Default power-on record, alarm record;
Wireless transportation		Built in 3G/4G wireless module, various model optional
		Compatible GPRS, EDGE;
		Built in WIFI, support hotspot;
System upgrade		SD card ; remotely upgrade;
Power supply & consumption	Power manage	ACC on / off, Timing on/off;
	Battery capacity	Support UPS, can go on working 30 mins after outage;
	Charging time	< 20mins
	Consumption	Working: ≥ 30mins;
Work Environment	Temperature	-20℃ ~ +70℃
Work Environment	Humidity	10% ~ 95%
Size		100(W) x95(H) x25(D) mm
