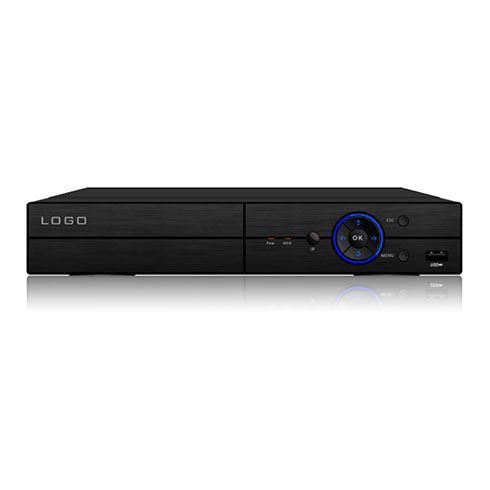

鈻8 Channel H.264 Network 720P AHD DVR (Video,Audio,VGA,PTZ Interface,etc)
鈻Mobile Phone Instant View (Iphone, Blackberry, WM, Sybian, etc)
鈻Network Remote View (Window IE, Google Chrome, Mozilla, Mac OS, etc)
鈻8PCS 720P Weatherproof Color Cameras with 24 IR LEDs
鈻Plug&Play Accesories (8PCS 60ft Video&Power Cable, splitter,screws)
鈻Mobile Phone Instant View (Iphone, Blackberry, WM, Sybian, etc)
鈻Network Remote View (Window IE, Google Chrome, Mozilla, Mac OS, etc)
鈻8PCS 720P Weatherproof Color Cameras with 24 IR LEDs
鈻Plug&Play Accesories (8PCS 60ft Video&Power Cable, splitter,screws)
鈻All-in-one Well-designed Color GiftBox Package
Pack Contents:
1x 8 channel H.264 AHD DVR
8x 720p Cameras
8x 18.3m BNC to BNC Cable
1x Power Supply Adaptor
1x 1 to 8 Power Splitter Cable
1x Remote Control
1x USB Mouse
1x Operating Manual
鈻8 Channel H.264 Network 720P AHD DVR (Video,Audio,VGA,PTZ Interface,etc)
鈻Mobile Phone Instant View (Iphone, Blackberry, WM, Sybian, etc)
鈻Network Remote View (Window IE, Google Chrome, Mozilla, Mac OS, etc)
鈻8PCS 720P Weatherproof Color Cameras with 24 IR LEDs
鈻Plug&Play Accesories (8PCS 60ft Video&Power Cable, splitter,screws)
鈻Mobile Phone Instant View (Iphone, Blackberry, WM, Sybian, etc)
鈻Network Remote View (Window IE, Google Chrome, Mozilla, Mac OS, etc)
鈻8PCS 720P Weatherproof Color Cameras with 24 IR LEDs
鈻Plug&Play Accesories (8PCS 60ft Video&Power Cable, splitter,screws)
鈻All-in-one Well-designed Color GiftBox Package
Pack Contents:
1x 8 channel H.264 AHD DVR
8x 720p Cameras
8x 18.3m BNC to BNC Cable
1x Power Supply Adaptor
1x 1 to 8 Power Splitter Cable
1x Remote Control
1x USB Mouse
1x Operating Manual
| System | Operating system | Embedded LINUX operating system |
| Display | Operation Interface | 16 bit real color GUI interface support mouse operation |
| Multilingual Language | YES, 25 kinds of language | |
| Display screen |
1/4 screen |
|
| Video | Video Standard | PAL/NTSC锛720P锛 |
| Image encode | H.264(Main Profile) | |
| Capture function | Yes | |
| Monitor quality |
Monitor锛欴1; VGA & HDMI: (1920*1080,1280*1024,1280*720,1024*768) |
|
| Playback quality | 960P/720P | |
| Encode capability | 8* 720P @25fps | |
| Decode capability | 4* 720P @18fps | |
|
Multi-Input
(ONVIF 2.8)
|
Analogue锛8ch 720P | |
| Analogue+ Network HD锛720P锛圓HD锛*4+720P锛坣etwork锛*4 | ||
| Network锛8*720P锛坣etwork锛 | ||
| Audio | Audio compression | G.711A |
| Record and playback | Record mode | Manual, alarm, motion detection, timing |
| Local playback | 1~4ch playback | |
| Video search | Time, date, event, channel search | |
| Storage and back up | Space Usage | Video 锛 720P锛10G~42G/day*channel锛1080P锛20G~80G/day*channel锛孉udio 691.2M/day *channel |
| Video storage | Local Hard Disk, Network | |
| Back up mode | Network backup, USB portable HDD | |
| Interface | Video input | 8ch BNC(1.0Vp-p, 75惟) |
| Video output | 1ch CVBS, 1ch VGA, 1ch HDMI | |
| Audio input | 4ch RCA (200-2800mV,30K惟) | |
| Audio output | 1ch RCA(200-3000mV,5K惟) /1ch HDMI audio output | |
| Alarm input | No | |
| Alarm output | No | |
| Network port | 1*RJ45 10/100 Base-T self-adaptive Ethernet port | |
| PTZ control | 1*RS485 port, Support more than 20 kinds protocols. | |
| USB port | Support USB 2.0 port | |
| HDD port | Accommodates 1 SATA HDDs (1 HDD capacity up to 6TB) | |
| Wireless Port | 3G & WIFI ( Extented by USB) | |
| User | User level | Admin / User |
| User right | Users can set different permissions (How to use please refer to the manual book) | |
| Password protection | YES | |
| Remote | Remote Independent Operation | YES |
| Download records | YES | |
| Remote Event Trigger Recording | YES | |
| CMS | CMS Software for multiple DVR (up to 255 DVR simultaneously) | |
| Browser | Internet Explorer, Mozilla Firefox, Google Chrome, Safari | |
| Live Audio | YES | |
| On-line user | Max. 10 | |
| Mobile Surveillance | YES (supporting iPad, iPhone, BlackBerry, Windows Mobile, Symbian & Android;iPad, iPhone, Andriod remote playback) | |
| Network Protocol | DHCP, PPPOE, FTP, DDNS, NTP, UPNP, EMAIL, IP authority, 3G, Wireless settings | |
| Alarm | Motion detection | 16 脳 12 grids per channel;6 adjustable parameters for accurate detection(for local analog channel only) |
| Event Notification | FTP / E-Mail | |
| Pre-alarm Recording | YES | |
| Video loss | Video loss notification | |
| Buzzer | YES | |
| Others | IR remote controller | Remotely control DVR and PTZ cameras via IR transmitter (IR receiver built-in) |
| Remote control | YES | |
| Cooling fan | No | |
| Tour | YES | |
| Power Source (卤10%) | DC 12V /2A | |
| Power Consumption (卤10%) | <10W锛圵ithout HDD锛 | |
| Operating Temperature | 0鈩 ~ +55鈩 | |
| Operating humidity | 10%锛90% | |
| Atmosphere | 86kpa锛106kpa | |
| Dimensions (mm) | 250mm(L)* 210mm(W)* 45mm(H) | |
| System Recovery | System auto recovery after power failure |
